Ultra Compact.
Ultra Precise.
Specialized coreless motor solutions for micro-precision control, ultra-compact devices, and high-response motion systems.
Ultra-Micro Brushless & Coreless Motors
Engineered for space-constrained applications, VAXOR ultra-micro motors deliver high-speed performance within extreme size limitations.
Innovative FPCB winding technology and AI-assisted optimization enable high production yield, stable output, and excellent power density.
With motors as small as Φ4mm, they provide reliable micro drive solutions for medical devices, precision instruments, UAVs, and consumer electronics.
Product Model

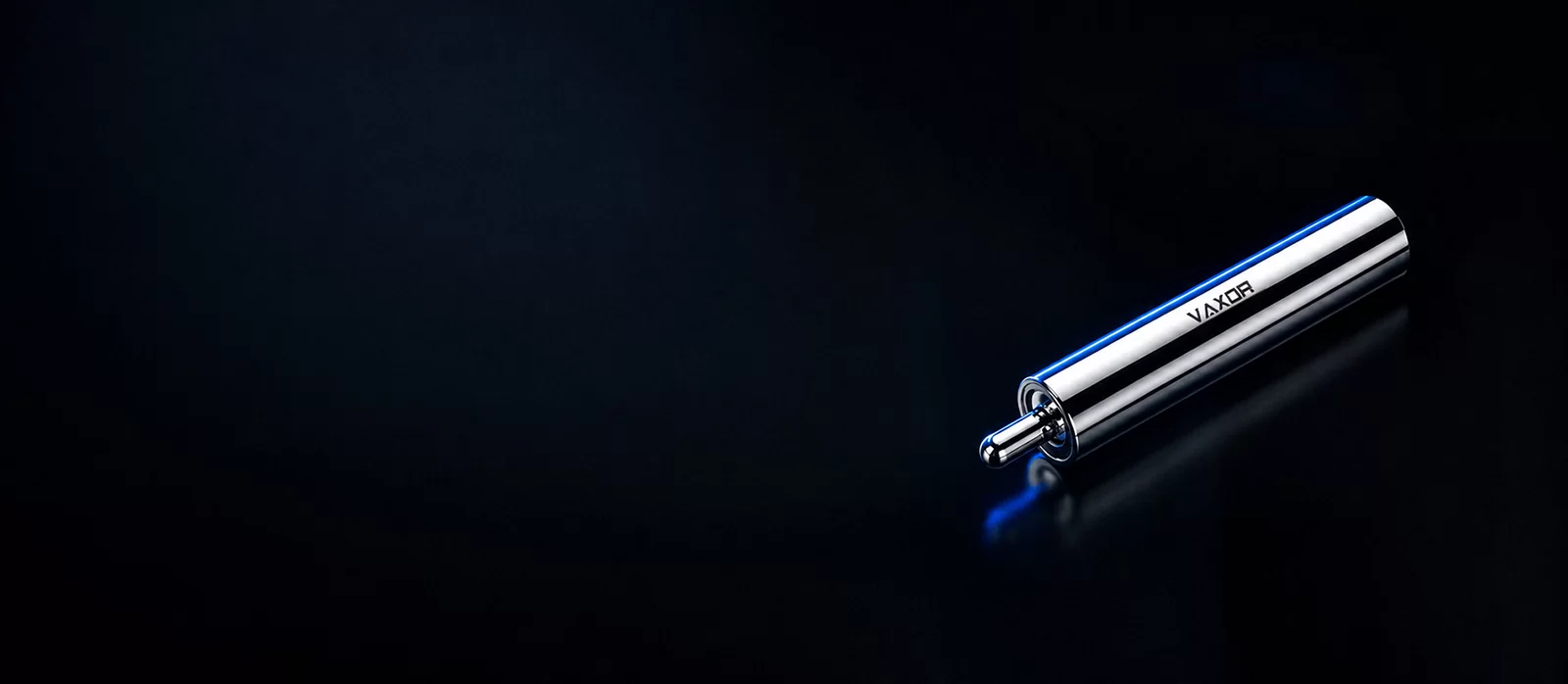

φ4mm Ultra-micro Brushless Coreless Motor
With a world-leading diameter of just 4mm, this motor is engineered for extreme space constraints, delivering irreplaceable drive solutions for medical devices, precision instruments and advanced miniature applications.
- Model
- G04P-VW00-QZ-1
- Voltage
- 6 V
- No Load Speed
- 55,000 rpm
- Nominal Speed
- 30,000 rpm
- Nominal Torque
- 0.38 mNm
- Stalling Torque
- 0.76 mNm
- Torque Constant
- 0.82 mNm/A
- Weight
- 1.7 g
φ5mm Ultra-micro Brushless Coreless Motor
The Φ5mm motor achieves an exceptional balance of performance, cost and manufacturability. Combining FPCB winding technology with AI-optimized design, it delivers reliable motion solutions for UAVs, wearables and beyond.
- Model
- G05P-VW00-QZ-1
- Voltage
- 6 V
- No Load Speed
- 55,000 rpm
- Nominal Speed
- 30,000 rpm
- Nominal Torque
- 0.40 mNm
- Stalling Torque
- 0.80 mNm
- Torque Constant
- 0.65 mNm/A
- Weight
- 2.6 g

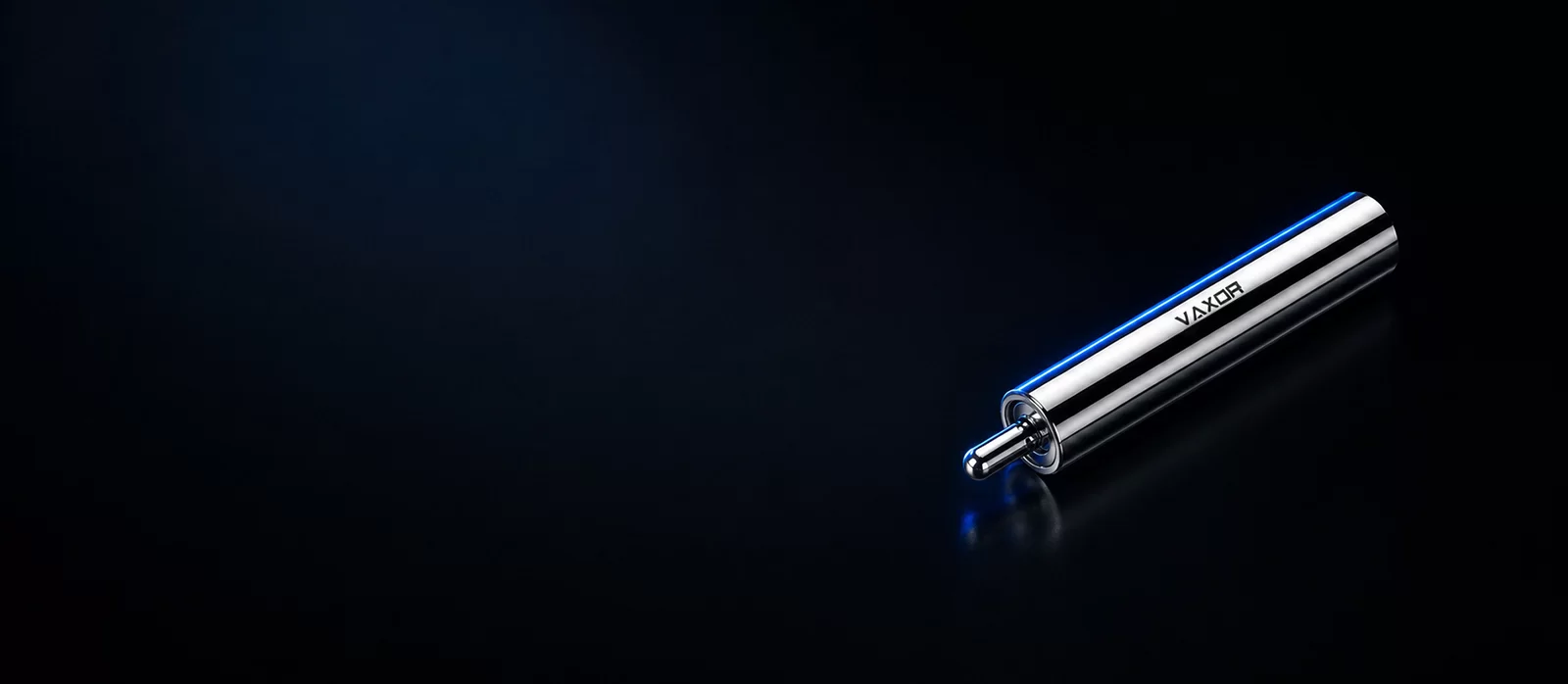

φ6mm Ultra-micro Brushless Coreless Motor
The Φ6mm motor enhances torque output and drive stability, delivering robust performance for demanding miniature applications within a compact footprint.
- Model
- G06P-VW00-QZ-1
- Voltage
- 12 V
- No Load Speed
- 63,000 rpm
- Nominal Speed
- 45,000 rpm
- Nominal Torque
- 0.49 mNm
- Stalling Torque
- 0.98 mNm
- Torque Constant
- 1.05 mNm/A
- Weight
- 3.75 g
